| OUR PRODUCTS |

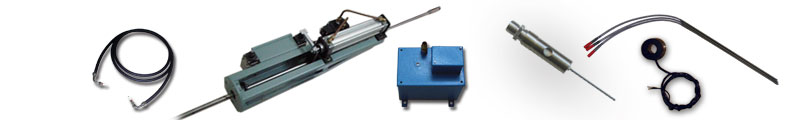

| 2. IGNITORS FOR IGNITING OIL & GAS |
1.0 HIGH ENERGY ARC(HEA) IGNITORS |
 |
| |
Raw meterials are imported and assembled by us
Enclosure construction:Heavy duty corrosive
Input voltage :110 VAC + 10% - 15%,50 HZ or
230 VAC + 10% - 15%,50 HZ
Input current:5 amps(rms) max
Output voiltage:2500 + 150 VDC
Stored energy:12 joules nominal
Sparkrate:4 per second/min
Duty cycle:15 minutes on and 30 minutes off
Op-temparature:-40°C to 75°C
Soak teparature:-40°C to 95°C
|
|
 |
| |
Raw Materials are imported and Manufactured by US
Operating Voltage:3600 V Pulsed Arc
Operating Temperature:Cable End : 150°C
Size Length:4000 mm
Bend Radius Min:100 mm
Insulation Test:The cable should with stand the dielectric break down of 5kv(peak),60 HZ for 1 minute |
|
 |
| |
Raw Materials Imported And Manufactured By US
Overall Length:2360 mm
Max Od:15.9 mm
Flex Section:762 mm
Operating Volt:3600v Pulsed Arc
Break Down Volt:7.5kv Hi-Pot 50 Sec
Op-Temparature:540°C Tip end
Meterial Tube:Stainless Steel
Material Flexible Section:Stainless Steel |
|
 |
| |
Operating Temparature:650°C Max
Operating Voltage:2500 V +/- 50 VDC
Length:187 +/- 3 mm
Diameter:15.9 +/- .15 mm |
|
 |
| |
Raw Materials Imported And Manufactured By US
Air cylinder size:1 1/2 "*4",8 stroke using dry & clean air supply
Operating pressure:70 VA to 100 psi(5kg to 7kg/ cm.sq)
Operating power:39 VA in rush, 20 VA holding
Solinoid valve:2 position 4 way, NPT ports, 110 VAC
Frequency:50 to 60 HZ,
Limit switch:02 nos, 10 amps rated max. Continus,SPDT
Operating temp:110°C max. |
|
|
|
